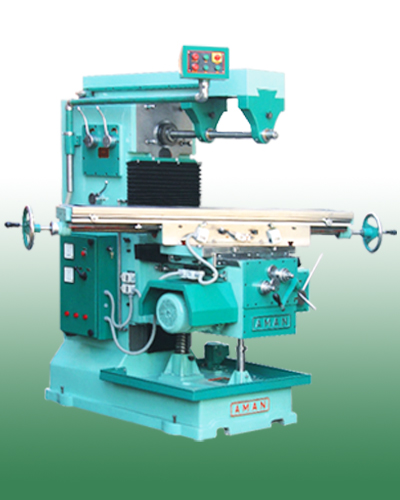

AMAN MILLING MACHINES was established in 1979, have long experience in the design and manufacturing of Horizontal All Geared Milling Machines & Vertical All Geared Milling Machines in India. We are covering a wide range of

BACK TO INTRO PAGE

Specification

CAPACITY	AMAN	890	AMAN	1020	AMAN	1140	AMAN	1270	AMAN	1400	AMAN	1525	AMAN	1650
Table	Inche MM		Inche MM		Inche MM		Inche MM		Inche MM		Inche MM		Inche MM
Working Surface	8 x35 200 x890		9 x40 230 x1020		10 x45 255 x1140		11 x50 280 x1270		12 x55 305 x1400		13 x60 330 x1525		14 x65 360 x1650
Sewivel	45......		45......		45......		45......		45......		45......		45......
T.Slot Nos./Size	3-1/23-12		3-1/23-12		3-5/83-16		3-5/83-16		3-5/83-16		3-5/83-16		3-5/83-16
Distance between T.Slot	3-1/23-12		3-1/23-12		3-5/83-16		3-5/83-16		3-5/83-16		3-5/83-16		3-5/83-16
Spindle
No.Of Spindle Speeds	6......		6......		9......		9......		9......		12......		12......
Range of Spindle Speeds	50to 750		50to 750		40to 750		40to 750		40to 750		40t0 1100		40to 1100
Spindle Taper	ISO- 40		ISO- 40		ISO- 40		ISO- 40		ISO- 40		ISO- 40		ISO- 40
Arbour Diameter	1 25.4		1 25.4		1 25.4		1 25.4		1 25.4		1 25.4		1 25.4
Feeds
Longitudinal (Manual/Auto)	18460		21 535		24610		27710		32840		38965		431090
Cross (in all geared only)	4.5115		6128		7152		9204		12280		14355		431090
Vartical (in all geared only)	10280		12305		14330		17430		20510		25636		29736
No of Auto Feeds	2......		6......		6......		9......		9......		3......		............
Feeds Range P/M Longi.	.1mm to.3mm/Rec		10mm to 120mm		10mm to 120mm		10mm to 120mm		10mm to 120mm		10mm to 120mm		............
No. Of Auto feeds in all Geared	............		............		............		............		6......		6......		6......
Longitudinal Feeds / Min	............		............		............		............		1/2x612x152		1/2x612x152		1/2x612x152
Cross Feeds / Min.	............		............		............		............		1/2x612x152		1/2x612x152		1/2x612x152
Vertical Feeds / Min	............		............		............		............		1/16x1.5 1.5x38		1/16x1.5 1.5x38		1/16x1.5 1.5x38
Rapid (in all geared only)
No.Of Rapid Feeds	............		............		............		............		1......		1......		1......
Longitudinal Rapid/Min	............		............		............		............		35890		35890		35890
Cross Rapid/Min	............		............		............		............		35890		35890		35890
Vertical Rapid / Min	............		............		............		............		7178		7178		7178
Electrical
Main Motor	1 HP -1440 RPM		1 HP -1440 RPM		1 HP -1440 RPM		2 HP -1440 RPM		3 HP -1440 RPM		3 HP -1440 RPM		5 HP -1440 RPM
Feed Motor			1 HP -1440 RPM		1 HP -1440 RPM		2 HP -1440 RPM		2 HP -1440 RPM		1 HP -1440 RPM		............
Feed Motor (in all geared only)	............		............		............		2 HP -960 RPM		2 HP -960 RPM		2 HP -960 RPM		3 HP -960 RPM
Coolant Pump	0.1 HP		0.1 HP		0.1 HP		0.1 HP		0.1 HP		0.1 HP		0.1 HP
Machine Weight	650 Kg		850 Kg		1150 Kg		1450 Kg		2200 Kg		3200 Kg		3800 Kg

Extra Accessories :
Dividing Head	Vertical Attachment	Rotary Table	Rack Cutting Attachment	Slotted Attachment	Cooling Accs	Machine Lamp
Hobbing Attachment	Machine Vice	Extra Abrour	Control Panel	Motorized feed gear box or without Rapid feed		Vertical Parking Bracket

Feeds & speeds are customized as per customer requirements also changes in . XYZ movements.
