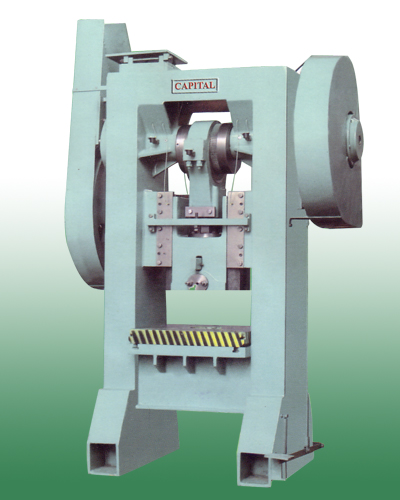

Specification "H" Type Power Press

CAPACITY	10 Ton	20 Ton	30 Ton	50 Ton	75 Ton	100 Ton	150 Ton	200 Ton	250 Ton	300 Ton	400 Ton	500 Ton
Bed Size	300 x350	350x400	400x450	450x500	550x600	600x650	650x700	750x800	800x820	900x950	1000x1150	1100x1100
Bed to Ram Bottom	250	250	300	400	400	450	465	500	550	600	650	700
Stroke Length	55	60	80	110	110	125	150	160	175	200	200	200
Crank Shaft Dia Length	70	80	90	125	125	150	175	200	225	250	300	300
Gear Dia	450	525	600	750	750	850	1000	1100	1200	1200	1200	1250
Fly Wheel Dia	525	650	700	900	900	1000	1100	1200	1300	1375	1500	1500
Holein Ram Clamping Die	25	28	32	45	45	50	55	60	70	80	100	110
No of Stroke per Minute	55	55	50	45	45	40	40	35	30	25	20	20
Power Required in(HP)	2	2	3	7.5	7.5	10	15	20	25	25	30	35
Motor RPM	1440	1440	1440	1440	1440	1440	1440	1440	1440	1440	1440	1440

Feeds & speeds are customized as per customer requirements also changes in . XYZ movements.
